Wiring and Commissioning Guide: Elsema 4-Channel Receiver and Remote Control with Sigma Gate (Generation 3)

This article covers how to setup the Elsema Receiver & remotes and pair them with the receiver installed in the Sigma Gate.

Please note that this is our Generation 3 Receiver/Remote Control set with 4-channels.

1. Mount the Receiver

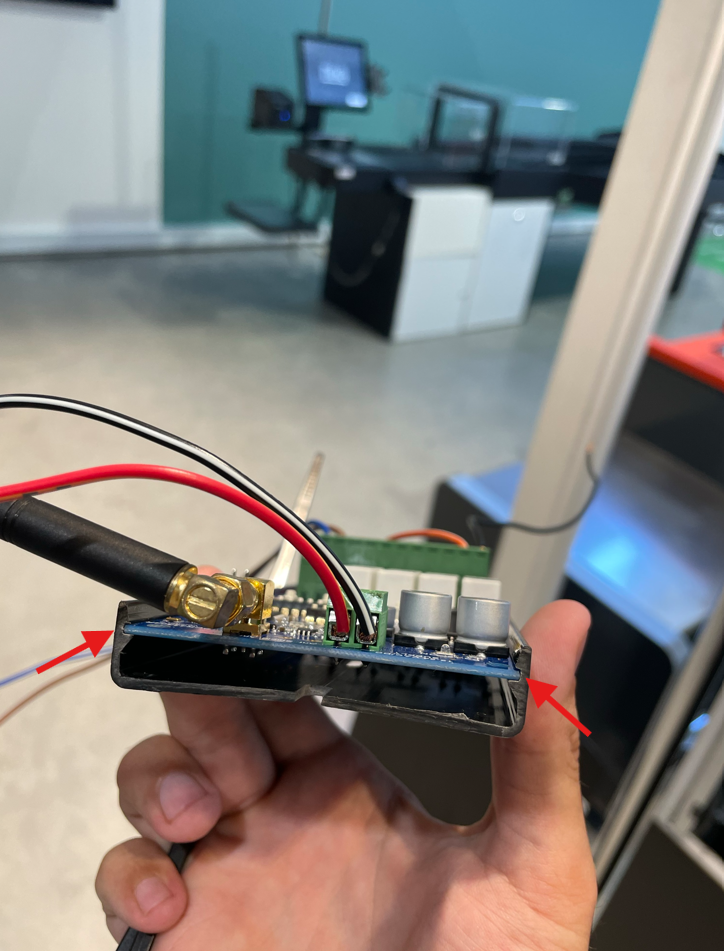

1. Fit the receiver into the plastic bracket. Fit it into the trace, see second picture.

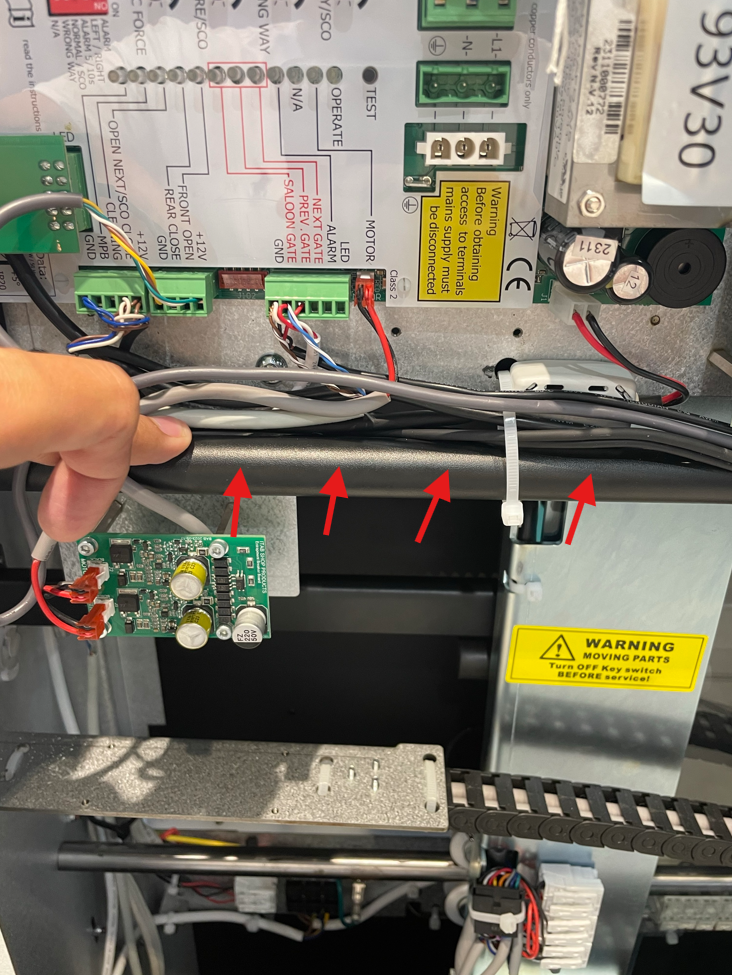

2. Remove cables from rail (creates extra space, otherwise the receiver can hit the cover when putting it back). *Please note, if you don't have the plastic bracket, don't remove the cables. The cables will protect getting metal against metal.

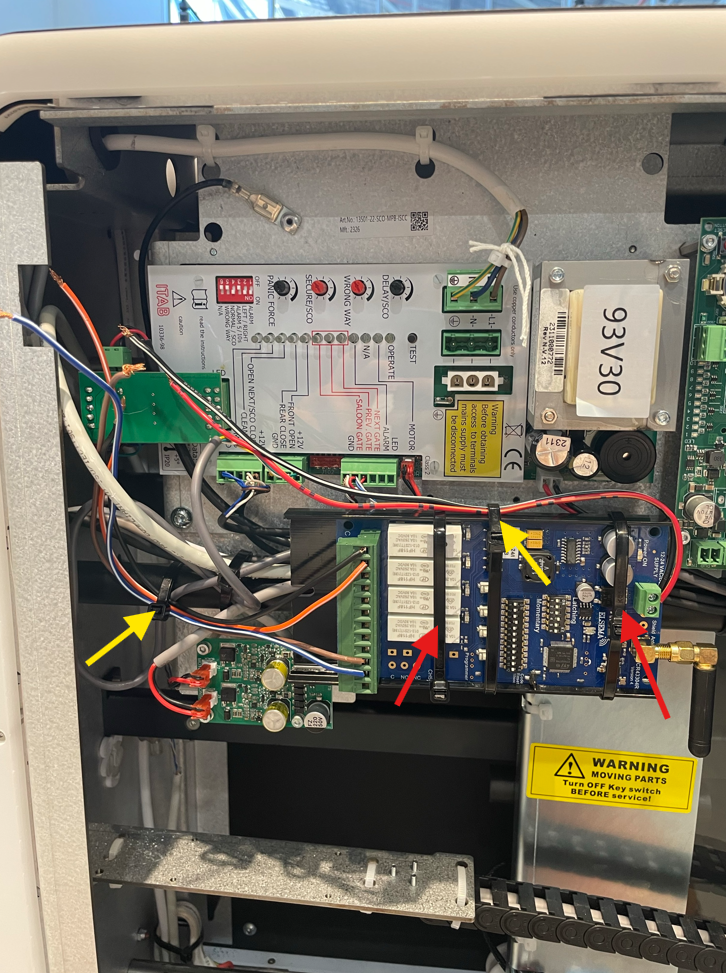

3. Let the bottom left corner "rest" on the screw to make it more stable (see second picture). Secure the receiver with two cable ties (red arrows). Securing cables with two cable ties (yellow arrows).

2. Wire the Receiver to Sigma Gate Control Board

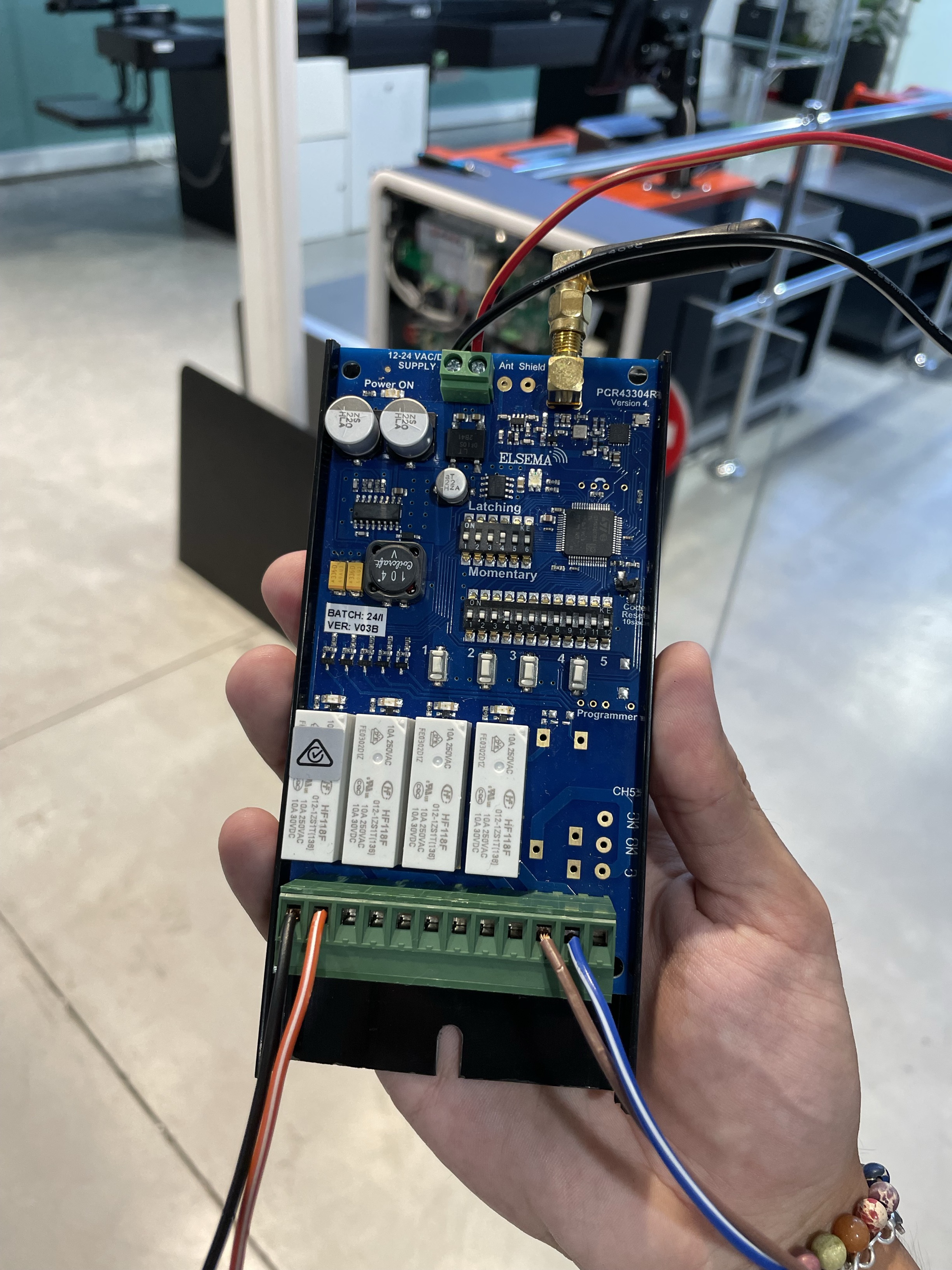

*Please note that the terminals are misaligned to the labels on the blue face, it is important to count the terminals as displayed above.

Connecting Power

1. Open the Sigma gate panel.
2. Connect Supply + to 12v on the Sigma control board.
3. Connect Supply - to Ground on the Sigma control board.

Relay 1 (Auto-Close)

1. Connect Ch1 NO to Front Open on the Sigma control board.
2. Connect Ch1 C to Ground on the Sigma control board.

*Please note, if the store for example has 3 pair of gates and 3 receivers. Use relay 1 on the first pair. Relay 2 on the second pair. Relay 3 on the third pair.

Relay 4 (Latched/Cleaning Mode)

*Please note that on a 3 gate store this will only be required on one receiver, otherwise all gates will be hold open at the same time.

1. Connect Ch4 NO to Cleaning on the Sigma control board.
2. Connect Ch4 C to Ground on the Sigma control board.



3. Set the DIP Switches & Pair Remotes

1. Change Mode Selection on the 6 DIP switches (outlined in red below) to OFF OFF OFF ON OFF OFF or Down Down Down Up Down Down.



2. On all receivers set switches 1-10 (outlined in green below) to match the store number using the examples in the table below. As an example if the store has a number 8 in the store number set DIP switch 8 to the ON/Up position and ignore any zeros in the store number. If the store has the same number more than once like 8888 only switch 8 must be set to ON/Up and rest will be down/off.

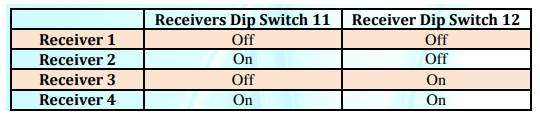

3. The table below explains Dip switch 11 and 12. The first receiver should always have Off/Off.
   If you the store has two receivers. The first should have Off/Off and the second should have On/Off. Follow the table for all the different set ups.



    4. Set DIP switches 1-10 in the remote exactly the same as the receiver.
        Dip switch 11 and 12 should always be Off/Off.

    5. Lastly insert the battery in the remote and test.
